| 品牌 | SanSheng |
|---|---|
| 型号 | SA12025B2H |
| 加工定制 | 是 |
| 类型 | 轴流风扇 |
| 电机功率 | 19.0/18.0 |
| 电压 | 220-240 |
| 电流 | 0.09/0.09 |
| 风量 | 66/78CFM |
| 转速 | 2200/2400RPM |

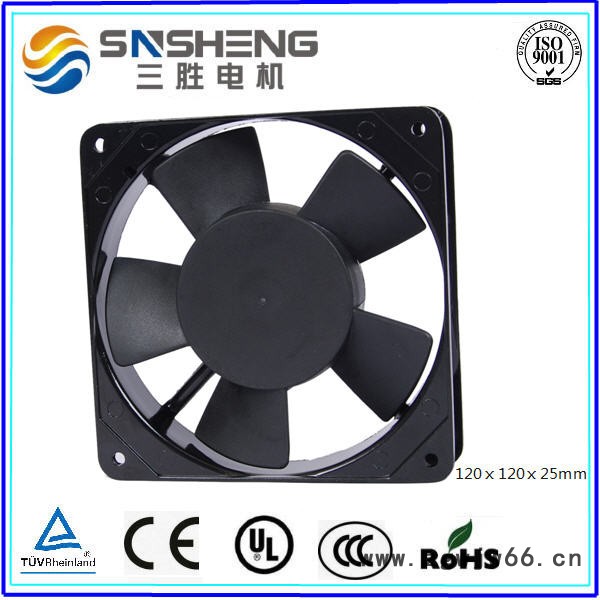

SIZE(尺寸): 120ⅹ120ⅹ25mm
ConSTRUCTION(结构):
Shaded pole induction motor(罩极异步电动机)
Die-cast aluminum housing(压铸铝外壳)
Glass fiber reinforced plastic impeller,UL 94V-0 rating(玻璃纤维增强塑料扇叶，UL94V-0）
Impedance protected(阻抗保护)
Safety certification(安全认证）：CCC,UL,CUL,TUV,CE
OPERATING TEMPERATURE(工作温度):
Ball Bearing -30°C to +75°C
Sleeve Bearing -10°C to +70°C
WEIGHT(重量）:310 g
| 型号 | 轴承 | 电压 | 频率 | 电流 | 功率 | 转速 | 风量 | 风压 | 噪音 | |
| RATING | FREQUENCY | RATING | POWER | SPEED | AIR FLOW | STATIC | NOISE | |||
| MODEL | BEARING | VOLTAGE | CURRENT | CONSUMPTION | PRESSURE | |||||
| VAC | Hz | A | W | RPM | m3/min | CFM | mm-H2O | dBA | ||
| SA12025B1H | Ball | 110-120 | 50/60 | 0.19/0.18 | 19.0/18.0 | 2200/2400 | 1.87/2.21 | 66/78 | 3.56/4.06 | 38/40 |
| SA12025S1H | Sleeve | |||||||||
| SA12025B1M | Ball | 110-120 | 50/60 | 0.16/0.15 | 16.0/15.0 | 2000/2000 | 1.64/1.64 | 58/58 | 3.00/3.20 | 35/35 |
| SA12025S1M | Sleeve | |||||||||
| SA12025B1L | Ball | 110-120 | 50/60 | 0.13/0.11 | 14.0/13.0 | 1800/1700 | 1.40/1.36 | 50/48 | 2.78/2.68 | 30/29 |
| SA12025S1L | Sleeve | |||||||||
| SA12025B2H | Ball | 220-240 | 50/60 | 0.09/0.09 | 19.0/18.0 | 2200/2400 | 1.87/2.21 | 66/78 | 3.56/4.06 | 38/40 |
| SA12025S2H | Sleeve | |||||||||
| SA12025B2M | Ball | 220-240 | 50/60 | 0.07/0.07 | 16.0/15.0 | 2000/2000 | 1.64/1.64 | 58/58 | 3.00/3.20 | 35/35 |
| SA12025S2M | Sleeve | |||||||||
| SA12025B2L | Ball | 220-240 | 50/60 | 0.05/0.05 | 14.0/13.0 | 1800/1700 | 1.40/1.36 | 50/48 | 2.78/2.68 | 30/29 |
| SA12025S2L | Sleeve | |||||||||
