| 额定起重量 | 400 |
|---|---|
| 额定载重量 | 350 |
| 驱动方式 | 液压 |
| 自由起升高度 | 1.3 |
| 自重 | 200 |
| 最大起升高度 | 1.5 |
| 品牌 | 镁丰 |
| 型号 | MFYT |

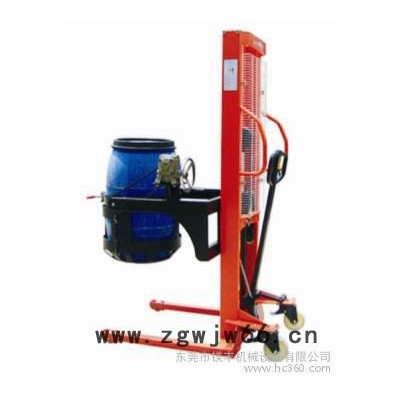

供应广东油桶倒料车 抱箍式油桶装卸叉车 适用于塑料桶
集油桶的搬运、堆高、称重于一身
Integrated functions of transporting, stacking and weighting特殊轧制工艺制造的”C”型门架，坚固安全
Gantry made of special-rolled industrial-manufactured C-type steel which is strong and safe
叼扣式鹰嘴结构，适合钢制油桶和塑料油桶，高质量油缸，起升高度能达到1600mm
Eagle-gripper structure, fit for operating with steel oil drum and PE oil drum; Excellent-quality oil cylinder, high lifting speed, maximum lifting height:1600mm
带电子称重式，有置零、去皮、称重功能**度达到±3‰
With electronic scale built-in; operational functions include: ZERO, TARE and weighting, of accuracy: ±3‰
油桶搬运车的优点是整车结构简单轻巧，操作简单省力，一个人即可完成整个油桶的搬运、堆高、和装卸车！
Oil drum carrier is featured by its simple-and-light-structure outline design which enables single one man complete transporting, stacking and loading & unloading.
适用于化工、食品车间、染料、涂料、胶黏剂、石油、食油等流质、液体的搬运，装卸等使用。
Applicable for chemical plants and food plants for transferring, loading & unloading and compounding materials of fluids, such as dyes, paintings, adhesives, petrol and edible oils, etc.
| 型号 Model | 额定负载Loading Weight (KG) | 净重 Net Weight (KG) | 脚轮规格 Wheel Dimension (mm) | 前支腿内、外宽Inner/Outer Width of Front Leg (mm) | 整车 尺寸 Outline dimensions (mm) | 转弯半径 Turning Radius (mm) | 提升高度Lifting Height（mm） |
| DT400A | 400 | 130 | Ф150*50 | 630、810 | 1110*900*2100 | 1400 | 1500 |
