品牌：日本岩田、台湾宝丽、德国萨塔
供料方式：压送式
规格：1.5
供应：500把
发货：3天内
| 供料方式 | 压送式 |
|---|---|
| 规格 | 1.5 |
| 类型 | 自动喷漆枪 |
| 品牌 | Devilbiss/特威 |
| 型号 | AG362 |
概述
DeVilbiss的AG360自动喷枪系列可提供多种喷枪类型，

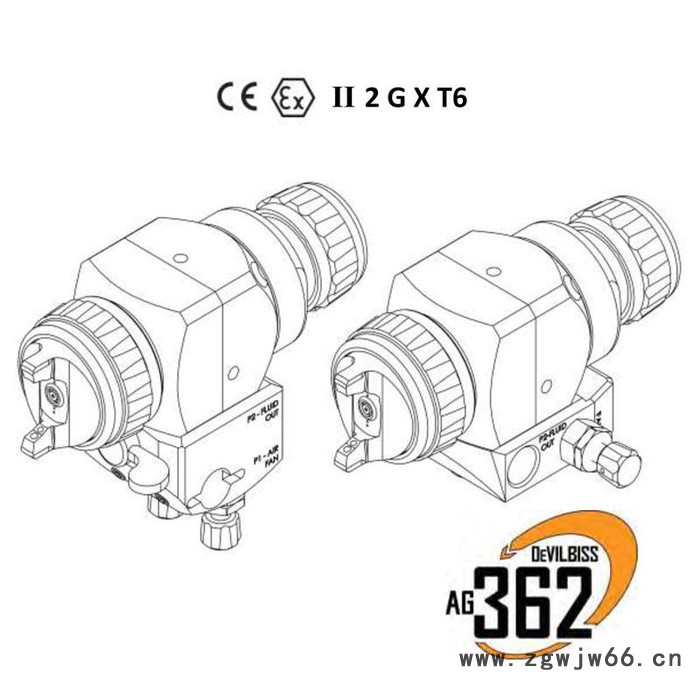

DeVilbiss AG362 空气自动喷枪
360 Series Air Cap Chart
| Air Cap and Type | Air Consumption | Air Inlet Pressure Bar (psi) recommended | *Typical Fluid Flow | *Typical Fan Pattern size mm |
| C1 Conventional | 300 l/min (10.7 cfm) | 3 Bar (45 psi) | 150-250 ml/min | 270 mm @ 200mm distance |
| C2 Conventional | 290 l/min (10.3 cfm) | 3 Bar (45 psi) | 100-350 ml/min | 250 mm @ 200mm distance |
| C3 Conventional | 440 l/min (15.7 cfm) | 3 Bar (45 psi) | 250-600 ml/min | 360 mm @ 200mm distance |
| TE10 Trans-Tech/High Efficiency | 255 l/min (9.1 cfm) | 2 Bar (30 psi) | 150-200 ml/min | 300 mm @ 200mm distance |
| TE20 Trans-Tech/High Efficiency | 325 L/min (11.6 cfm) | 2 Bar (30 psi) | 150-200 ml/min | 290 mm @ 200mm distance |
| TE30 Trans-Tech/High Efficiency | 375 L/min (13.3 cfm) | 2 Bar (30 psi) | 200-300 ml/min | 300 mm @ 200mm distance |
| TE40 Trans-Tech/High Efficiency | 355 L/min (12.6 cfm) | 2 Bar (30 psi) | 250-400 ml/min | 380 mm @ 200mm distance |
| TE50 Trans-Tech/High Efficiency | 425 L/min (15.1 cfm) | 2 Bar (30 psi) | 250-400 ml/min | 300 mm @ 200mm distance |
| HV30 HVLP | 450 L/min (16.0 cfm) | 1.75 Bar (26 psi) | 160-200 ml/min | 315 mm @ 200mm distance |
| C62 Conventional | 431 L/min (15.4 cfm) | 3 Bar (45 psi) | < 3.5 L/min | 390 mm @ 300mm distance |
| C64 Conventional | 400 L/min (14.3 cfm) | 3 Bar (45 psi) | < 2.5 L/min | 340 mm @ 300mm distance |
| C67 Conventional | 426 L/min (15.2 cfm) | 3 Bar (45 psi) | < 2.0 L/min | 430 mm @ 300mm distance |
Note: HV30 (HVLP) operates at 0.7 bar (10 psi) at the cap. All illustrated flow rates may vary according to paint/material and pressures used.
Spray gun specifications
| Gun Dimensions & Weights | |
| AG-362 Gun Size (L x H x W) mm | 122 x 44 x 44 |
| AG-362 (Gun only) Weight | 557 g (inc air cap) |
| AG-362P Size (L x H x D) mm | 145 x 44 x 44 |
| AG-362P (Gun only) Weight | 524 g (inc air cap) |

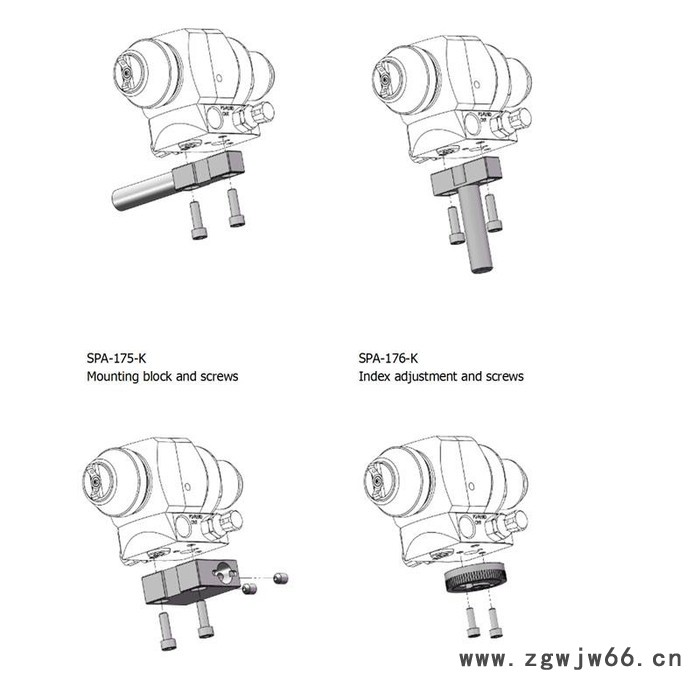

| Manifold Dimensions & Weights | |
| Cam Manifold Size (L x W x H) mm | 60 x 44 x 53 (inc valves) |
| Cam Manifold Weight | 347 g |
| Screw Manifold Size (L x W x H) mm | 59 x 63 (inc valves) x 20 |
| Screw Manifold Weight | 268 g |
| All Guns | |
| Max Air Input Pressure (P1) | 7 bar |
| Max Fluid Input Pressure (P2) | 7 bar |
| Max Operating Ambient Temperature | 40°C nominal |
| Gun Head & Fluid Passageways | Stainless Steel |
| Gun Body Material | QuickClean? coated Aluminium |
| Manifold Material | Stainless Steel |
| Fluid Nozzle & Needle Materials | 303 Stainless Steel, Nitride coated Stainless Steel, |
| Seals & O rings | HDPE, FEPM, PTFE, FFKM |

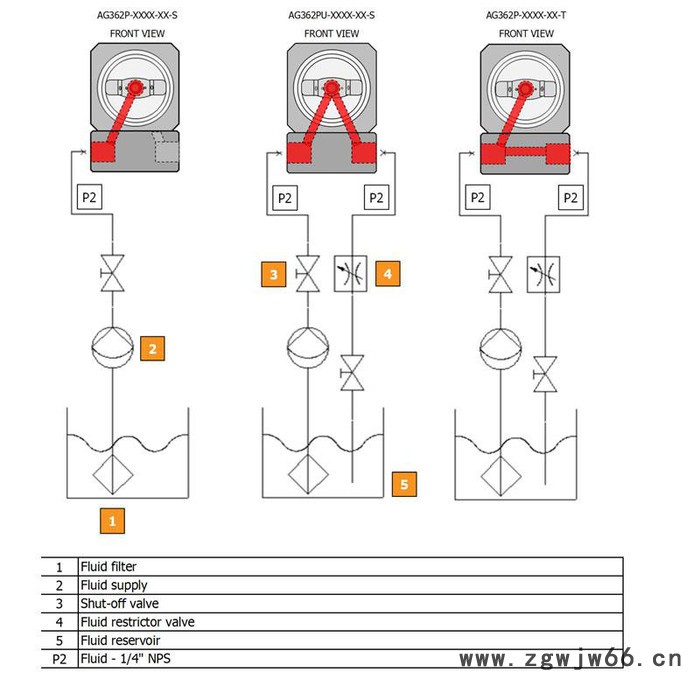

Fluid & Air Inlets
| AG-362L Lever Manifold | AG-362S Screw Manifold |
| CYL Air inlet connection 1/8” G | CYL Air inlet connection 1/8” G |
| Fluid Inlet connection 1/8” G | Fluid Inlet connection 1/4’ NPS |
| Fluid Outlet connection 1/8” G | Fluid Outlet connection 1/4” NPS |
| ATOM Air inlet connection 1/8” G | CAP Air inlet (ATOM+FAN) 1/4” G |
| FAN Air inlet connection 1/8” G |
|
