品牌：蓝晨机械
型号：LC-PLCGZ系列
蒸汽表压 (Mpa)：0.6~0.8
起订：50套
供应：50套
发货：60天内
| 型号 | LC-PLCGZ系列 |
|---|---|
| 蒸汽表压 (Mpa) | 0.6~0.8 |
| 产地 | 河北 |
| 电压 | 多种可选 |
| 新旧程度 | 全新 |
| 品牌 | 蓝晨 |

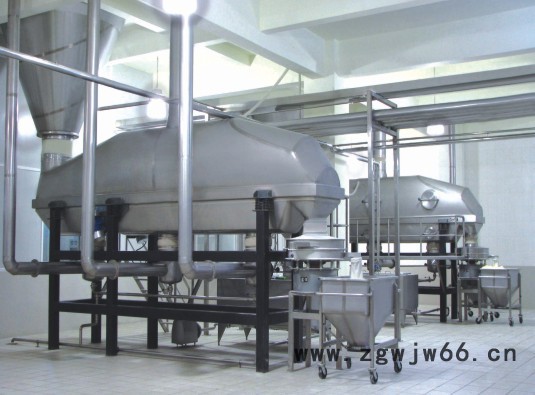

本公司在喷雾干燥方面进行了大量的试验研究。使其在乳粉加工上，采用了多支喷枪喷雾，旋风捕粉技术，微粉由风送系统送至塔顶，实现微粉与雾滴之间的附聚。还采用了振动流化床二次干燥、冷却，卵磷脂喷涂等技术。经过附聚后的乳粉形成中空颗粒，热物理状态和速溶性明显改善。振动流化床二次干燥、冷却，可使乳粉在降速干燥过程中延长干燥时间，节约能源。干燥后的乳粉迅速冷却，即可包装，避免了二次污染，大大提高了乳粉的质量。
This company has made much experiments and researches on spray drying. To produce the milk powder, we adopt the multiple-gun spraying and cyclone powder collection technology to transport the powder to the tower top and make it attach with fog drop.We also adopt the secondary stage drying and cooling technologies with the vibration fluidized bed, as well as the lecithin coating technologies. After attaching with the fog drop, the milk powder becomes the hollow granule and has its thermal physical property and solubility improved distinctly. The secondary stage drying and cooling technologies by vibration fluidized bed can prolong the drying time and save energy when the drying speed of the milk powder is lowered. The dried milk powder can be packed immediately after it cools down so that the secondary pollution is avoided and the quality of milk powder is improved greatly.
本设备使用于溶液、悬浮液等含干物质液体的喷雾干燥。物料在塔内受热时间短、蒸发迅速、热交换温度底，对产品的溶解度、色泽、风味及营养成份影响较小，特别适用於浓奶、豆奶、蛋液、血粉、药剂、酵母和食品添加剂等热敏性物料的喷雾干燥，广泛用于食品，医药和化工行业。
Technical explanation
This equipment is applied to spray drying of liquid with solid included such as liquor and suspending liquid. In the tower the material is heated in a short time and evaporated quickly with lower temperature
of heat exchanger, in a result there is little impact on the solubility, color, flavor or nutrition of the product. Therefore, this equipment can be widely used in the industries of food, medicine and chemical
products, especially suitable to dry the heat-sensitive materials by spraying such as thick milk, soy milk, egg liquid, blood meal, medicament, yeast and food additives.

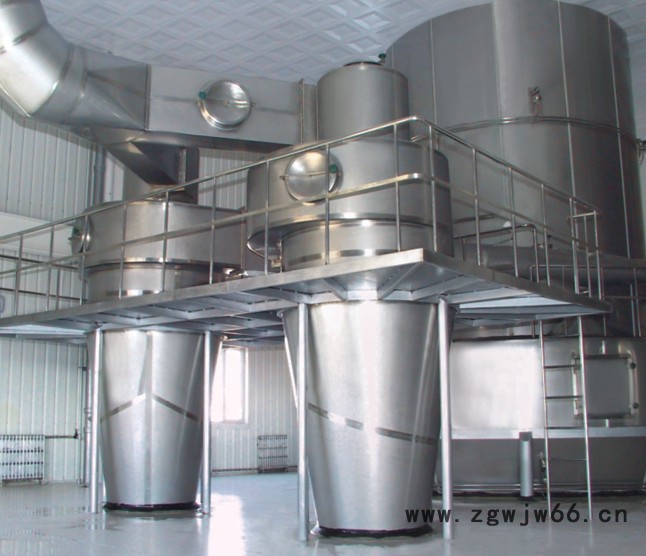

多喷头立式压力喷雾干燥塔--产品规格
Multiple-nozzle Vertical Pressure Spray Drying Tower --Product specification
型号 / 参数 Model / Parameter | 水份蒸发量 （kg/h） Moisture evaporation | 蒸汽表压 (Mpa) Steam Gauge pressure | 加热面积 (m2) Heating area | 喷头 个数 Spray head | 蒸汽耗量 (kg/h) Steam consumption | 压缩空气耗量 (0.7MPa,m3/min) Compressed air consumption | 占用空间 (m) Space |
PLCGZ0-5 | 5 | 0.6~0.8 | 电加热 Electric heating | 1 |
|
| 3.2 x4 x5.8 |
PLCGZ03-70 | 75 | 0.6~0.8 | 120 | 1 | 210 | 0.5 | 7x6x9 |
PLCGZ03-125 | 150 | 0.6~0.8 | 250 | 2~3 | 450 | 0.6 | 13x8.5x15 |
PLCGZ03-250 | 250 | 0.6~0.8 | 385 | 2~3 | 750 | 0.6 | 14x9x19 |
PLCGZ03-0 | 375 | 0.6~0.8 | 570 | 2~3 | 1125 | 0.8 | 15x10x21 |
PLCGZ03-500 | 500 | 0.6~0.8 | 780 | 3~4 | 1500 | 0.8 | 19x9x24 |
PLCGZ03-750 | 750 | 0.6~0.8 | 1150 | 3~4 | 2250 | 1.0 | 21x13x25.5 |
PLCGZ03-1000 | 1000 | 0.6~0.8 | 1550 | 3~4 | 3000 | 1.0 | 24x13x28.6 |
PLCGZ03-1500 | 1500 | 0.6~0.8 | 2300 | 3~4 | 4500 | 1.0 | 28x16x33 |
PLCGZ03-2000 | 2000 | 0.6~0.8 | 3110 | 6 | 6000 | 1.5 | 28x18x34 |
PLCGZ03-2500 | 2500 | 0.6~0.8 | 4100 | 6 | 7500 | 1.5 | 32x20x36 |
PLCGZ03-3000 | 3000 | 0.6~0.8 | 4950 | 8~12 | 9000 | 2.0 | 32x22x37 |
PLCGZ03-3500 | 3500 | 0.6~0.8 | 5710 | 8~12 | 10500 | 2.0 | 35x24x38 |
PLCGZ03-4000 | 4000 | 0.6~0.8 | 6610 | 8~12 | 12000 | 3.0 | 35x26x39 |
PLCGZ03-5000 | 5000 | 0.6~0.8 | 7980 | 8~12 | 15000 | 3.0 | 36x28x42 |
PLCGZ03-6000 | 6000 | 0.6~0.8 | 9110 | 8~12 | 18000 | 3.0 | 40x30x45 |
