品牌：SanSheng
品牌：SanSheng
型号：SA17251B2H
起订：100个
供应：99000个
发货：7天内
| 品牌 | SanSheng |
|---|---|
| 型号 | SA17251B2H |
| 加工定制 | 是 |
| 类型 | 轴流风扇 |
| 电机功率 | 34.0/33.0 |
| 电压 | 220-240 |
| 电流 | 0.22/0.21 |
| 风量 | 190/235CFM |
| 转速 | 2700/3100RPM |

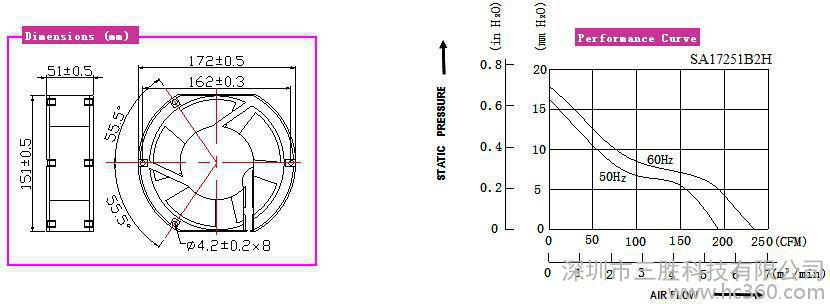

SIZE(尺寸): 172ⅹ150ⅹ51mm
ConSTRUCTION(结构):
Shaded pole induction motor(罩极异步电动机)
Die-cast aluminum housing(压铸铝外壳)
Glass fiber reinforced plastic impeller,UL 94V-0 rating(玻璃纤维增强塑料扇叶，UL94V-0）
Impedance protected(阻抗保护)
Safety certification(安全认证）：CCC,UL,CUL,TUV,CE
OPERATING TEMPERATURE(工作温度):
Ball Bearing -30°C to +75°C
Sleeve Bearing -10°C to +70°C
WEIGHT(重量）:900 g
| 型号 | 轴承 | 电压 | 频率 | 电流 | 功率 | 转速 | 风量 | 风压 | 噪音 | |
| RATING | FREQUENCY | RATING | POWER | SPEED | AIR FLOW | STATIC | NOISE | |||
| MODEL | BEARING | VOLTAGE | CURRENT | CONSUMPTION | PRESSURE | |||||
| VAC | Hz | A | W | RPM | m3/min | CFM | mm-H2O | dBA | ||
| SA17251B1H | Ball | 110-120 | 50/60 | 0.50/0.45 | 37.0/36.0 | 2700/3100 | 5.37/6.65 | 190/235 | 16.0/17.78 | 45/50 |
| SA17251S1H | Sleeve | |||||||||
| SA17251B1M | Ball | 110-120 | 50/60 | 0.41/0.39 | 32.0/30.0 | 2400/2300 | 4.80/4.50 | 170/160 | 15.00/14.00 | 41/40 |
| SA17251S1M | Sleeve | |||||||||
| SA17251B1L | Ball | 110-120 | 50/60 | 0.35/0.35 | 26.0/25.0 | 1900/1500 | 3.50/3.00 | 125/105 | 8.00/6.00 | 32/30 |
| SA17251S1L | Sleeve | |||||||||
| SA17251B2H | Ball | 220-240 | 50/60 | 0.22/0.21 | 34.0/33.0 | 2700/3100 | 5.37/6.65 | 190/235 | 16.00/17.78 | 45/50 |
| SA17251S2H | Sleeve | |||||||||
| SA17251B2M | Ball | 220-240 | 50/60 | 0.19/0.18 | 30.0/28.0 | 2400/2300 | 4.80/4.50 | 170/160 | 15.00/14.00 | 41/40 |
| SA17251S2M | Sleeve | |||||||||
| SA17251B2L | Ball | 220-240 | 50/60 | 0.16/0.16 | 26.0/25.0 | 1900/1500 | 3.50/3.00 | 125/105 | 8.00/6.00 | 32/30 |
| SA17251S2L | Sleeve | |||||||||
| SA17251B3H | Ball | 380 | 50 | 0.11 | 34.0 | 2700 | 5.37 | 190 | 16.00 | 45 |
| SA17251S3H | Sleeve | |||||||||
| SA17251B3M | Ball | 380 | 50 | 0.09 | 30.0 | 2400 | 4.80 | 170 | 15.00 | 41 |
| SA17251S3M | Sleeve | |||||||||
| SA17251B3L | Ball | 380 | 50 | 0.07 | 26.0 | 1900 | 3.50 | 125 | 8.00 | 32 |
| SA17251S3L | Sleeve | |||||||||
