| 加工定制 | 是 |
|---|---|
| 材质 | 尼龙66 |
| 规格 | PG7~PG29 |
| 公称直径 | 20.4（mm） |
| 连接型式 | 螺母固定 |
| 适用范围 | 电器,仪器仪表,线束 |
| 颜色 | 黑色和灰色 |
| 代理商 | CANWAY |
| 品牌 | Heyco |
| 型号 | 3216 3454 3210 |

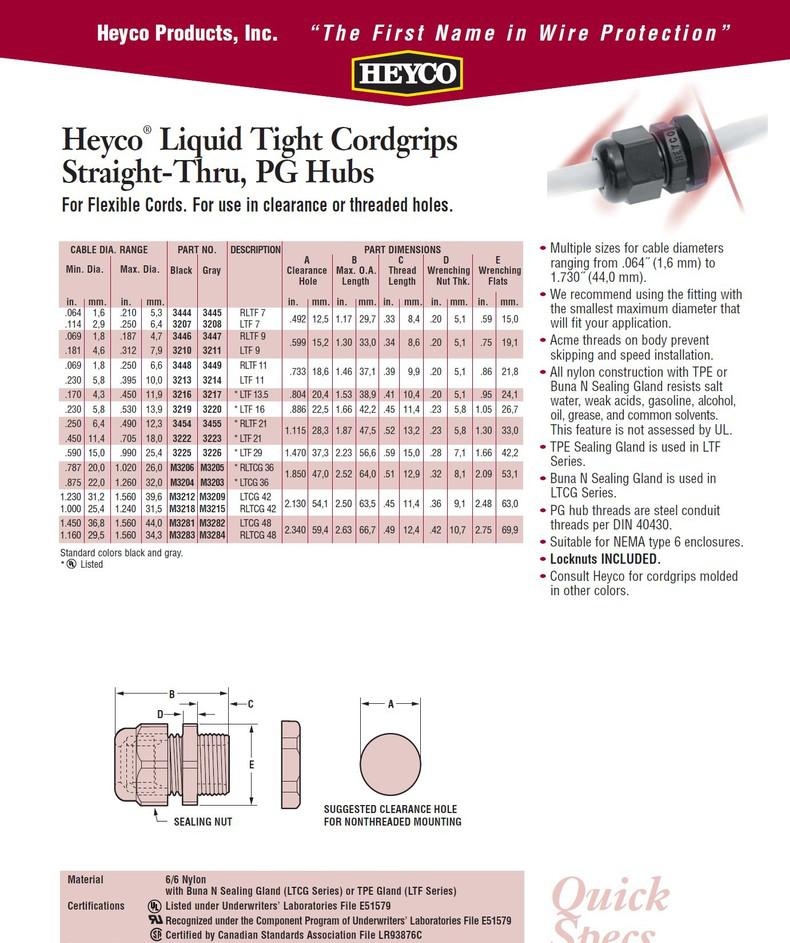

Straight-Thru, PG HubsIP 68 rated.Widest range of approved cable diameters.Acme threads on body prevent skipping and speed installation.For use in clearance or threaded holes.All nylon construction with TPE sealing gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. (This feature is not assessed by UL.)PG **hreads are steel conduit threads per DIN 40430.Multiple sizes for flexible cord diameters ranging from .064" (1,6 mm) to .990" (25,1 mm). For larger sizes, see Heyco-Tite Liquid Tight Cordgrips.We recommend using the fitting with the smallest maximum diameter that will fit your application.Unassembled Nylon Locknuts INCLUDED.For Heyco Liquid Tight Threaded Plugs, click here.Consult Heyco for cordgrips molded in other colors.
